Tuesday, November 24, 2009

Web Deployment Painkillers: VS 2010 & MS Deploy

Last week I did a talk at the PDC 2009 and the talk is now available to view online live at


The abstract of the talk was “Learn about next generation of ASP.NET Web Deployment with tips & guidance on how you can reuse and extend the technologies available with VS 2010 to build a hassle free web deployment solution for your team. See how to use VS 2010 and MS Deploy to assist with with creating virtual directories in an automated fashion, setting up app pools correctly, uploading only the changed content, replicating servers in web farms, modifying Web.config files for testing/staging/pre-Prod/UAT/Production environments, setting up team build environment or deploying databases.”

Hope you will enjoy it!!


PS: Btw, the presentation deck is available to download at Web Deployment Painkillers… Feel free to use it the way you like…

Saturday, October 31, 2009

VS 2010 Beta 2 Read Me Items for Web Deployment

There are some known issues/bugs related to VS 2010 Web Deployment features in VS 2010 Beta 2 Read Me… I can imagine reading the entire Beta 2 read me file can be daunting so I thought I can just copy paste the ones related to Web Deployment here…

DB Deployment will fail if the Database Name is longer than 127 characters

Description: If you are using latest VS 2010 Web Deployment Features and trying to deploy your database using the Deploy SQL property page then at times you might get error from VSMsDeploy task.

There might be several reasons for the failure including connection and authentication issue but a current bug in the product does not allow you to script schema/data from a database (typically SQL Express MDF file) if the file path is longer than 127 characters.  In the OS like XP or Win2K3 the default path for the VS project & its default ASP.NET Login/Profile DB could be something like C:\Documents and Setting\... \Visual Studio 2010\Projects\MyProject\App_Data\ASPnet_DB.mdf... This path can potentially exceed 127 characters and result into Deployment failure...

Workaround: The easy work around is to have the project copied to a location where the path will not exceed 127 characters for e.g. C:\MyProject\App_Data...  This issue will eventually be resolved in the product...

Some VS 2010 Web Deployment Features will not work if VS 2010 is installed on Vista RTM instead of Vista SP1

Description:  If you are using the new Web Deployment feature set in VS 2010 and are using the below features which integrate with MSDeploy:

then you will have to use Vista SP1 instead of Vista RTM as your OS.

Workaround: MsDeploy requires features which are built inside Vista SP1 and hence trying to run Web Deployment features on Vista RTM fails.  This is a required dependency so you will have to use Vista SP1 as your OS for VS 2010.  Do note that you can still use any other operating system like XP, Win2K3, Win2k8 R2, Win7 etc to install VS 2010 and use the Web Deployment features, it is just advised that any of the OS versions that you use are updated with the latest Service Packs so that all the required dependencies are in place.

MsDeploy.exe.config file will be required to run Web Deployment on machines with .NET 4.0 only

Description: If you installed VS 2010 on a clean machine which does not have .NET 2.0 (e.g Win2K3)  and are trying to use the VS 2010 Web Deployment Features then when you run the deploy.cmd file to install your web package you might receive error stating "Msdeploy.exe -.NET Framework Initialization Error Unable to find a version of the runtime to run this application."  This is due to the fact that VS 2010 comes with only .NET 4/CLR4 and and CLR 4 does not allow CLR 2.0 executables to run  without having an explict exe.config file…  If you are using other .NET 2.0/3.0 or 3.5 exes on a box with just .NET 4 then you might face similar issues with those EXEs too…

Workaround: You can easily work around this by going to "%Program Files%\IIS\Microsoft Web Deploy" (& additionally also on "%Program Files (x86)%\IIS\Microsoft Web Deploy" folders and create following msdeploy.exe.config file in there

<startup useLegacyV2RuntimeActivationPolicy="true">
<supportedRuntime version="v2.0.50727" />
<supportedRuntime version="v4.0" />

This issue will be fixed in the future releases of the product.


Wednesday, October 21, 2009

How to ensure placeholder folders are created during VS 2010 Web Deployment

During many web deployment scenarios developers want to be able create place holder folders where eventually their log files or runtime generated files like XMLs, Images etc will be stored…

With VS 2010 Web Deployment there will be a small work around required for you to be able to deploy place holder folders…  Before I go about explaining the work around let me call out that if you do not know about VS 2010 Web Deployment features it might be worth while to check out the blog series about VS 2010 Web Deployment at Overview Post for VS 2010 Web Deployment

Anyways, as VS 2010 Web Deployment is completely based on MSBuild based Web Publishing Pipeline (WPP) lot of deployment depends upon the MSBuild constructs…  One of the key features which is also supported using MSBuild based constructs is the ability to exclude Files and Folders from deployment.  I am hoping to write blog posts on both of these topics at some point but currently without going into the details consider following:

There is a file/folder structure like C:\MyWeb\Foo\Bar\myfile.htm…  VS 2010 will allow you to exclude or include myfile.htm or folder “Foo” from Web Deployment… If you now chooses to include myfile.htm but chooses to exclude “Foo” folder then the WPP will get into unwanted complex state for potentially trivial gains…

That is the reason most of the include, exclude, delete etc operations are done at the File level rather than at Folder level… So when you are excluding a folder from deployment  behind the scenes a bunch of files under that folder are getting excluded and the end result is the folder being excluded too… The above explanation is not exactly how it translates into code but is more for understanding purposes…

Anyways, this design decision causes the side effect that if there are no files in a folder then the folder does not get deployed as well… By now I imagine you must have figured out the work around too :-) Ya! just put a place holder file even if it is empty.txt in your place holder folder and it will get deployed too !!

If this causes you a lot of grief then do write back with your scenarios so that we can try to understand and analyze them individually…

Also do note that whether you are creating a web package or doing 1-Click Publish the same rationale applies as ultimately same WPP is executed behind the scenes for both…


Monday, October 19, 2009

How to debug the selected page inside selected project all the time?

As you might already know http://connect.microsoft.com is a way to open bugs/request suggestions on various Microsoft products… One of the repeated suggestion I see for Web Development within Visual Studio is the ability to hit F5 on any .aspx page within a solution and have it be treated as the “Start up page”…

It is pretty common to set a fixed page as a start up page within a Web Project…You could do that simply by right clicking the page of your choice and setting “Set as Start Page” as shown below:

Set As Start Page

The above will fix your start page to be “Default.aspx” and no matter what you select within the project, Default.aspx will start when you hit F5…

You can make the active selected page as your start up page by going to the Project –> Properties –> Web  and choosing the “Current Page” as your “Start Action”

Current Page Start Action

There is a similar option for Web Site Projects too, although the interesting ask comes up when you have more than one web project in your solution and you want to debug current page from the project you have currently selected…

Most people right click on their project and click “Set as StartUp Project” every time they want to change the project they are debugging  (as shown below):

Set as StartUp Project

Although there is a well kept secret in Visual Studio, which is worth noting…  You can actually right click on your “Solution File” and click “Set Start up  projects…”

Set StartUp Projects...

This will bring up the below dialog:

StartUp Projects

In this dialog you just need to select the radio button which says “Current Selection” and this will automatically make the project you are in as the start up project…

Effectively by choosing “Current Selection” for the Start Up Project and the “Current Page” for Start Action,  you can now very easily debug the project + web page of your choice simply hitting F5…



Monday, October 12, 2009

Server specific Web.config sections replacement with WDP

In this post I am hoping to explain how you can change your web.config settings per different server environment using Web Deployment Projects (WDP) for VS 2005 or VS 2008…

First of all let me start with the fact that WDP for VS 2005 as well as WDP for VS 2008 are build configuration aware… In fact, special effort was made in WDP 2005 & WDP 2008 to allow configuration specific settings…

That is the reason when you look at the WDP UI you can see configuration specific dropdowns as shown below:

WDP Property Page

You can create one build configuration per your server environment eg. “Testing”, “Staging” , “Production” etc and configure all of your WDP settings per build configuration pretty easily… Learn more how to manage configurations per build environment

Next I want to change connectionStrings section in side the web.config for “Testing” server and “Release” server… The original connection String section in my web.config file looks as below:

<add name="vishal-db" connectionString="Data Source=vijoshi-DevBox; Initial Catalog=vishal-db; Integrated Security=True"/>

  • For “Testing” environment I would like to change my Data Source to be vijoshi-Testing

  • For “Release” environment I would like to change my Data Source to be vijoshi-Release

To accomplish this I am going to add two configuration files to my project named connectionString.Testing.config and connectionString.Release.config… After adding the two files my solution explorer should look as below:


The content of connectionString.Testing.config file will look as below:

<add name="vishal-db" connectionString="Data Source=vijoshi-Testing; Initial Catalog=vishal-db; Integrated Security=True"/>

Notice that the connectionString.Testing.config only contains connectionStrings section (as opposed to original web.config which may contain many other sections) … Similar to the above example in connectionString.Release.config file I will only change the Data Source to vijoshi-Release…

After these two files are added I can now open my WDP configuration and go to the “Deployment” node and check the “Enable Web.config file replacement”…  After this the only thing I need to do is write connectionStrings=connectionString.Testing.config  as shown below…




After this when I build my WDP project the connectionStrings section will be replaced by the content of the connectionString.Testing.config…

Also now I can modify the Configuration from “Testing” to “Release” and set the Web.config file section replacements section to look as below


This way you can also modify the other config sections each in a new line of the text box shown above…

Hope this will help…


Thursday, October 08, 2009

Live Meeting: Simplifying Deployment With the Web Deployment Tool (MSDeploy)

One of our MVPs Sayed Ibrahim Hashimi is doing a Live Meeting  MVP TV talk on : Simplifying Deployment With the Web Deployment Tool (MSDeploy)

You are invited to join the talk which is scheduled for

Wednesday, October 14th, 2009 | 4:00pm – 5:00pm (PDT, Redmond time)


Deploying ASP.NET Websites has always been a challenge and different teams have used different approaches to overcoming those challenges. Microsoft has offered some support for making deployment easier in the past. For instance they first introduced Web Deployment Projects for Visual Studio 2005, and also have a version for 2008. Web Deployment Projects do greatly simplify the process of calling the aspnet_compiler and aspnet_merge tool but even though their title states “Deployment” they had no support for physically deploying the site. Now Microsoft has introduced the Web Deployment Tool, also known as MSDeploy. MSDeploy will bridge the gap between taking a web site and physically deploying it to its destination. With MSDeploy you can easily and very effectively perform tasks such as pushing an ASP.NET site (Web site, Web Application Project, ASP.NET, etc) from one machine to several other machines. This is achieved by the target machines having the MSDeploy Remote Agent Service installed and running. You can sync two different Web Sites that are hosted in IIS, you can create a web package (simply a .zip file) and use that as your source, you can sync two different folders, and many other options. Another compelling feature of MSDeploy is that it will be integrated into Visual Studio 2010. From Visual Studio 2010 you can compile your ASP.NET Web Application Project and then create the Web Package which contains all your content files plus IIS settings. This one file will full describe your web.

Live Meeting Information

Join the meeting.
Audio Information
Computer Audio
To use computer audio, you need speakers and microphone, or a headset.
Telephone conferencing
Use the information below to connect:
Toll-free: +1 (866) 500-6738
Toll: +1 (203) 480-8000
Participant code: 5460396

Please join 10 minutes prior to the start time.

First Time Users:
To save time before the meeting, check your system to make sure it is ready to use Microsoft Office Live Meeting.

Unable to join the meeting? Follow these steps:

1. Copy this address and paste it into your web browser:

2. Copy and paste the required information:
Meeting ID: PR7D6Z
Entry Code: A5128ML0Y0D
Location: https://www.livemeeting.com/cc/mvp

If you still cannot enter the meeting, contact support


Microsoft Office Live Meeting can be used to record meetings. By participating in this meeting, you agree that your communications may be monitored or recorded at any time during the meeting.

Hope this helps!!


Monday, September 28, 2009

Do you think building Web sites should be easier, faster and fun?

If you answered “Yes” then it might be interesting to you that there is an opportunity on our team for a person who has passion for making web development easier and exciting for everyone…

[NOTE: I have received a tons of resume already on this posting, thanks to everyone for sending your resume and showing interest… As there are several resumes to look into I will probably try to spend reasonable time over the weekend and respond whether the resume fits the needs of the job or not… Thanks again for your interest…]

This job posting is the unofficial job posting  describing a person whom I am looking to refer to my team to consider for an official job posting which exists somewhere on Microsoft.com… :-)

Our team is chartered with building Web Developer Tools based on web standards and so we are looking for someone who knows HTML, CSS, JavaScript/AJAX…

We would love if this person knows PHP and/or ASP.NET too… If you know someone who loves building Web Sites and is passionate about web development technologies then please pass on the word…

The person will most likely have to relocate to Redmond, WA and would work as a Program Manager (PM) within Microsoft…  Considering that I am inviting folks who are not familiar with Microsoft jargons let me write couple of lines about being a PM… :-)

As a PM, this person will have to be the voice of The Web Developer, an advocate of the web developer to the rest of the team so that the right technologies can be created…

Before I joined Microsoft I use to be some species of a developer i.e. I wrote code almost everyday so being a PM worried me coz it felt like I will not be writing code anymore… Well that is not true, a PM typically needs to represent the customer, in this case the customer is a Web Developer so as a PM, this person should be able to behave like a Web Developer… In short, this person will have the liberty to be amongst the first people to try out new web developer tools & technologies and hence can code as much as he/she likes :-)

Now, many will start asking questions about how many years of experience does one need to have, how much salary will be given, how proficient should one be with Visual Studio and .NET, Is knowing ASP.NET or ASP.NET MVC important; well lot of that will depend upon the person and I do not have finite answers to any of these… !!

But,  at this point I just want to ask simple but important questions to the potential candidate…

  • Are you passionate about web development and have a vision of how it can be made much easier, faster and fun…?
  • Have you developed real world web sites which are up and running on the internet/intranet…?
  • Are you a person who believes in web developer community and contributes towards it in someway, may it be blog, open source code, forums, articles, books, twitter etc
  • Do you like speaking in front of a big audience at conferences and talk about the future of web development and doing coolest demos on web development?
  • Do you understand what are the gaps in web development today in PHP/ASP.NET and what needs to be done to fix those?

If you answered “Yes” to the questions above send me an email with your resume and some background about the above at FirstName.LastName@Microsoft.com or call me at +1-425-705-2031 and we can talk…


PS: Comments for this blog post have been closed, you can feel free to send me your questions/concerns directly via email…

Raghuraman & Amit – Although my email is already up there at various places but I still changed this based on your recommendation :-)

Tuesday, September 22, 2009

Overview Post for Web Deployment in VS 2010

In past few months I and my team have written several blog posts on VS 2010 Web Deployment features… In VS 2010 there was a lot of investment made in Web Deployment and over next few months we will be writing more on the subject…

Below is the list of all the posts for easy reference:

Overview of VS 2010 Web Deployment

Web Packaging (Put your web into a .zip file)

Web.Config Transformation (Change Web.Config files per deployment environment)

Database Deployment

Web Publishing (Push you web from one machine to another)

Tips & Tricks for Web Deployment


Hope you will enjoy the VS 2010 Web Deployment features…



Friday, August 28, 2009

All for that small Drop Down Box – Part 3

I wrote couple of posts describing how Web MultiTargeting (Web MT) works in VS 2010… You can find those posts at:

Today  I hope to cover few other things related to MultiTargeting that the team focused on during VS 2010 and ASP.NET 4 cycle…

Silverlight MultiTargeting

VS 2010 will allow you to develop Silverlight (SL) projects seamlessly…  SL has got its own runtime versions like SL 2.0/3.0 and eventually there will be SL 4.0 too…  SL development has been possible with VS 2008 where you might have your Web Projects using SL 2.0 or 3.0 and now when VS 2010 comes out is is obvious that developers will expect smooth migration and upgrade for their VS 2008 SL projects into VS 2010…

So in VS 2010 there will be functionality available to upgrade your SL projects to SL 3.0… As SL has different versions it becomes important for VS 2010 to support MultiTargeting between different SL versions… Do note that these version are completely independent of .NET FX versions…

We have talked about Web Projects supporting .NET 2.0/3.0/3.5 as well as .NET 4… In addition to this it is now important for each of these Web Project to support different versions of SL… Thus when you create a new SL project there will be a drop down in the new project creation wizard which allows you to choose what version of SL do you want to target as shown below:

Silverlight New Project

On selecting Silverlight Application when you click “OK” then the below wizard will show up which will allow you to target the available Silverlight versions in your project…

Silverlight MT

SL MT also uses the Reference assemblies infrastructure that we discussed during Part –1 of this post…  You can find that SL also has its own set of “Reference Assemblies” as shown below:

SL Reference Assemblies

This actually brings up an interesting point to note that Reference Assemblies infrastructure is pretty extensible and can be used for Frameworks which are technically outside of .NET Framework too…


As you know ASP.NET MVC 1.0 was released on top of VS 2008… Then eventually the support for VS 2010 was also provided…  VS 2010 will fully support ASP.NET MVC just like it supports Web Application Projects or Web Site Projects… There will be upgrade options available from VS 2008 MVC projects to VS 2010 MVC Projects…

MVC projects can MultiTarget based on project references i.e. if you have reference to MVC 1.0 your intellisense will work for 1.0 and if you have reference to MVC 2.0 your intellisense will work for 2.0…  If your hoster does not support ASP.NET MVC just yet you can just select the reference to MVC assemblies and in the properties mark “CopyLocal” to True which will copy the MVC assemblies into your BIN which you can just simply deploy to the server along with your project (as shown below)…


Multiple Frameworks in same Solution

If you have read Web MultiTargeting posts (Part 1Part 2) you already know by now that there is a lot happening with respect to toolbox filtering, property grid filtering, context sensitive markup intellisense, JavaScript intellisense, C#/VB intellisense,  IIS App Pool management, web.config etc…

If someone has a big solution with several web projects, few class libraries, few web services etc, it is very likely that they will not update all of their project at the same time to .NET 4… So VS 2010 needs to make sure that things don’t break even if there were multiple projects in a single solution and all of them were targeting different .NET Framework Versions (with few Silverlight projects with multiple versions into the mix :-)) …

There were various stress scenarios which were tested and optimized for in this area… In fact we have something called as “Overall Goodness Factor (OGF)”… OGF is a subjective adhoc test which needs to be performed on a regular basis by various people across the the team to understand how the product is behaving…  As most of the folks in our teams are developers (even if their title don’t say so :-)) they do reasonable job in playing around with various real world projects… This particular OGF covering stress scenario was always hard to execute, coz every time we had to set up this complex project structure from ground up and play around with it to make sure VS 2010 is actually performing correctly… Btw, the OGF report is sent out pretty broadly across the division for features like MT so if  any team’s OGF was not “Good” it use to become the the center of everyone’s attraction across the division (not in a good way :-))… In short there was enough motivation provided to get things right!!

Making sure all Web Stack Features Work

As Web MT operates relatively in the lower layers of VS 2010 and ASP.NET 4 stack a small issue in MT surfaces as a big issue somewhere else… Although this is very much assumed and expected but the MT team had to specifically write Automation tests to ensure other features within the products like Dynamic Data, AJAX, Web Deployment, Build/Compilation, Debugging, WCF, Web Services etc etc continues to perform while targeting any .NET Framework version…

Most of the time we did not face a lot of issue in this area, but nevertheless something which is worth mentioning…:-)

Target Framework Moniker & Profiles

As we talked about earlier “Reference Assemblies” which are laid down on the disk at %Program Files%\Reference Assemblies folder are meta data only assemblies… By default there are Reference Assemblies folders created for Silverlight versions and .NET Framework versions (e.g. 2.0, 3.0. 3.5 & 4)… VS 2010 architecture runs using a concept called as “Target Framework Moniker” which describes where reference assemblies should be picked from the disk…  The target framework Moniker looks something like below:


  • Target Framework Identifier (“.NETFramework” in above example)
  • Target Framework Version (“Version=v4.0” in above example)
  • Profile Name (“ServerCore” in above example)

Based of this information VS 2010 will pick up “Reference Assemblies” which in turn will allow VS 2010 to control the behavior across the board in the IDE (i.e. on toolbox filtering, intellisense, property grid filtering etc etc)…

When Profile Name in the target framework Moniker is present then VS 2010 looks under the framework for the presence of the Profile definition (Think of “MT Profile” as a SUBSET of the full .NET framework)

Profile Folder

When Profile Name in target framework Moniker is missing then the full frameworks are picked up… i.e. “.NETFramework,Version=v4.0” will pick up reference assemblies for the full .NET 4 Framework…

Profiles are interesting coz in the future there might be platforms and servers which do not need full .NET Framework but only subset of it… VS 2010 can ensure that projects developed using a specific Profile will not land up accidentally consuming the larger surface area of .NET framework which might be absent on the destination… Eventually Mobile development can have its own profile and so can Windows Client development have its own… Anyways, the key point is that “Profiles” are a reusable way to provide MultiTargeting support with Visual Studio and will be expressed via the “target framework moniker”…

You might be wondering where is this target Framework Moniker physically visible… Well the answer is complicated but what is important to note is that starting .NET 4 ASP.NET web.config  schema will support a special attribute called targetFramework=”4.0” as shown below:


Following things are worth noting about this attribute:

  • The attribute resides on the compilation node of the system.web attribute of the web.config…
  • This attribute was introduced in ASP.NET 4 and it is not supported for .NET 2.0/3.0/3.5 webs (as they shipped before the concept of Reference Assemblies and Profiles was introduced)… i.e. do not try to code something like “targetFramework=v3.5” in VS 2010  it will not work :-)
  • “targetFramework” attribute is just a short form of “targetFrameworkMoniker”…
  • “targetFrameworkMoniker” was the attribute which was earlier used in VS 2010 Beta1 but in final VS 2010 release it will be renamed to “targetFramework”…
  • targetFramework=”4.0” is same as targetFramework=.NETFramework,Version=v4.0”
  • If there was a profile then that could be added to targetFramework too e.g. targetFramework=”.NETFramework,Version=v4.0,Profile=ServerCore" (btw, Profile=ServerCore" is just a made up name by me, it does not exist :-))
  • Post VS 2010 Beta1, targetFramework will not be a required attribute at runtime for ASP.NET 4… But, it is required for VS 2010 to support correct MT behavior within IDE so I strongly encourage you to not delete that attribute from your web.config file… Its, just a little attribute it means no harm :-)
  • As targetFramework attribute is optional at runtime, if it was missing from web.config and the web was deployed under .NET 2.0 App Pool in IIS then ASP.NET will assume the web to be 2.0 Web… If the web was deployed on .NET 4.0 App Pool in IIS then ASP.NET will assume that the web is .NET 4 web…
  • targetFrameworkMoniker, which was  the VS 2010 Beta1  equivalent of targetFramework attribute was a required attribute  i.e. if that was absent you would get an error as below:

“The application domain or application pool is currently running version 4.0 or later of the .NET Framework. This can occur if IIS settings have been set to 4.0 or later for this Web application, or if you are using version 4.0 or later of the ASP.NET Web Development Server. The <compilation> element in the Web.config file for this Web application does not contain the required 'targetFrameworkMoniker' attribute for this version of the .NET Framework (for example, '<compilation targetFrameworkMoniker=".NETFramework,Version=v4.0">'). Update the Web.config file with this attribute, or configure the Web application to use a different version of the .NET Framework.”

The solution for the above error in VS 2010 BETA 1 is to add below attribute under compilation node of the web.config file


Anyways, I guess now you know a lot more about a single attribute within web.config than you would ideally like to, so let’s move on :-)

Retargeting between Framework Versions

I intentionally kept this piece towards the end coz now you know a whole gamut of things that happen around Web MT within Visual Studio for a single project… The nice part is that VS 2010 will allow you to simply go to your project properties and use that retargeting drop down box shown below to flip your Framework version between 2.0, 3.0, 3.5, 4 or any of the Profiles that might be installed on your box… And as soon as you retarget IDE will frantically start doing a bunch of things behind the scenes and within no time will reload your project and get you all set on new Framework of your choice…


If you choose to down target your project from say .NET 4 to .NET  3.5 you will get a bunch of errors when you build, the primary reason for that is that VS 2010 cannot simply wipe out source code from your code files, it does not really know what code you wrote and tweaked painstakingly and suddenly loosing it all might be scary… But anyways, the chances of people moving from .NET 4 to 3.5 are very few so most people do not ever experience the errors… Even if you see retargeting errors most of the time the solution is all about deleting some new 4.0 specific code which is pretty easy to do…

Anyways, in the image above you will also see a tons of extra frameworks, we have not yet made progress beyond 4.0, so most of them are not real… :-) They are all the test profiles and frameworks that MT team created painstakingly to make sure MT really works in whatever difficult situation we will throw at it…  So, when VS 2010 ships all the test frameworks will be gone and all you will see are few Frameworks is that small Drop Down Box…. :-)


The remaining posts in the Web MultiTargeting Series are:

Tuesday, August 25, 2009

All for that small Drop Down Box – Part 2

Web MultiTargeting (Web MT) for VS 2010 has been a great journey of fine technology and a tons of learning for me in person, I am sure everyone in the team feels very similar (although some may add “+ lot of pain” into the mix :-))…  Yesterday, I published some of the details around what Web MT offers web developers in VS 2010… You can read it at:

All for that small Drop Down Box – Part 1

I covered approx 10 different features of MultiTargeting in the previous post, today I am going to time box myself to a couple of hours to write as much as I can and then see if we need Part –3 of this series in few more days or not… :-)

Anyways, let us get started!!

Filtering Markup Intellisense

One of the essential benefits of working within IDE like Visual Studio is that you get your code colorized correctly and intellisense keeps showing up as and when you need it…  Before working on many of these feature areas I often use to take things like keywords getting colorized and intellisense showing up etc pretty much for granted, now I don’t, now I appreciate that ultimately everything is a text pad before it becomes as fancy as VS 2010 code editor is… :-)

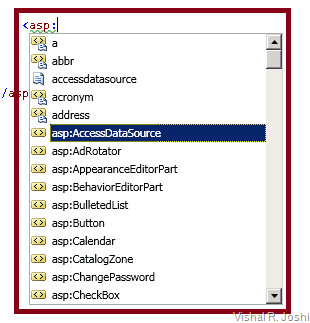

The MT team did a reasonable amount of work to make sure that when you go about typing <asp: in HTML editor of VS 2010 and you start getting intellisense as below:

markup intellisense

then that is actually customized to the correct ASP.NET version… Imagine if folks got <asp:ListBox in .NET 2.0 project (where ListBox control is not supported) and they started using the ListBox only to find out when the web project is deployed it will not work…  Well, VS 2010 will not show you <asp:List Box in .NET 2.0 project but in order to do that there was work done to filter out the mark up from intellisense which does not apply in a particular framework… After we got the filtering working then the team was assigned to do some more work to make sure that the design was refined in a way that it did not adversely impact performance…

Correct JavaScript Intellisense

You must have already heard that VS 2010 gives great JavaScript intellisense support… In fact in VS 2010 there was a lot of work in this area (out side of MT work) to ensure that you get intellisense everywhere, hopefully I will write about that also in a different post but whether or not I do I am sure you will start noticing the difference in JavaScript intellisense in VS 2010 over VS 2008…

Anyways, for now what is interesting to know is that for Microsoft AJAX the JavaScript files are embedded inside the assemblies like System.Web.Extensions etc…  The AJAX support has only been growing in every .NET framework release and it is one of the reasons why people move from .NET 2.0 to 3.5 and will hopefully move to .NET 4 too…

You might recollect the reference assemblies discussion from my Part 1 post and that reference assemblies are meta data only assemblies… You might also recollect that VS 2010 process loads only .NET 4 and then reference assemblies are used to mask .NET 4 features in lower level targets like .NET 2.0/3.0 and 3.5…

Now the AJAX JavaScript files are embedded inside assemblies and they actually differ from framework to framework…  If VS 2010 would use the embedded JavaScript files from .NET 4 assemblies all the time then .NET 2.0/3.5 projects would land up consuming some JavaScript functions which may not be available in that framework…  Due to such scenarios the Reference assemblies actually always contain embedded resources (even though they do not actually contain the source code implementations)… Web MT team worked on getting these embedded resources from the correct reference assemblies and feeding to the JavaScript intellisense engine to ensure that you get correct AJAX intellisense when you are using Microsoft AJAX feature sets…  It was kind of cool to see even JavaScript intellisense get target aware, I hope folks who use a lot of Microsoft AJAX will be able to appreciate this :-)

Special support for AJAX Control Toolkit (ACT)

It is funny that we land up calling AJAX Control Toolkit as “ACT”, I guess not many web developers using and contributing to ACT don’t do so!!  Anyways, ACT 1.0 was an out of band release (i.e. it did not ship as part of .NET 2.0) and offered various controls and extenders which are used by many many web developers…  Eventually ACT 3.5 and now community previews of recent ACT release are becoming available…  When you download and use ACT then you get controls and extenders in your toolbox and your web controls get options to add or remove extenders (e.g. A TextBox control can have a ColorPicker extender)… When all this things come together in VS 2010 there are a lot of possibilities like what if you have .NET 2.o project what kind of ACT should be made available, what if you have ACT 1.0 as well as ACT 3.5  on your box how should VS 2010 react to it, what should be allowed and what should be prevented via errors and intellisense so that web developers do not land up getting their webs into a bad state… ACT in itself with all its combinations keeps several members of our QA team busy for extended period of time… Their goal is  that things should just work and web developers should remain blissfully unaware of the complexity behind the scene…

Actually the entire MultiTargeting feature in a way is like that “If you as a developer never realized MTs existence throughout your project lifespan--> from creation, to editing to deployment in production, to end of maintenance life then it is “mission accomplished” for us:-)”…  It feels like working in the entertainment industry, making movies everyday and contributing in the category of work which is pivotal but does not have an Oscar category associated with it!!  As long as our movie is loved by the people watching it we will be happy and satisfied, so in short the ask from you is “Love VS 2010 and .NET 4”  it is indeed great!!

Support for 3rd party controls

Ensuring that 3rd party controls from likes of Infragistics and Dundas work seamlessly across framework versions (based on how they are designed) was also important… Some people want to be able to not keep buying same control over and over again after upgrading their framework version (sounds familiar :-))…  There is a reasonable amount of work done in verifying controls from many of our partners and also working with many control vendors to provide them with the guidance on how to work within VS 2010 to make sure things continue to work find when people migrate their projects into VS 2010…  The central MT team across the division worked together to come up with a guidance document for control vendors to integrate into VS 2010, even this simple blog post series is long enough so I will leave to you to imagine how much information must be poured into that document which will be used by various companies to build controls which will work within VS 2010…  You will be surprised on how versioning, licensing and naming is done by various partners… Ensuring that nothing of this broke in VS 2010 was not easy…:-)

ASP.NET Compilation System

With .NET 4 running in VS 2010 process the ASP.NET Compilation System used is also .NET 4… Before we talk more about this let me tell you what ASP.NET Compilation System does – it is the system which actually takes the web pages, parses the various ASP.NET related syntax present inside the HTML e.g. <asp:GridView etc and converts that into code… It also pulls out all of the inline C# or VB code out of your web page and calls the correct C#/VB compiler on it… This is the core ASP.NET Compiler which runs inside of Visual Studio…

Now imagine that the ASP.NET Compiler within VS 2010 was required to be made target aware… What I mean by that is when you are targeting .NET 2.0 and you have .NET 4.0 syntax in your web then the compiler needs to throw an error which shows up in your VS 2010 error list which you can then double click and you are taken to the line on which there was an error…  This actually is the same kind of error reporting mechanism that happens even when there is a typo in source code… In essence ASP.NET 4 compiler needs to get into the “correct framework mode” to provide the accurate error messaging and to avoid any type bleeding from happening…

There are also MT implications on C# and VB compilers which I will possibly cover in a separate post… In any case trust me that making compilation system target aware is a significant endeavor…

IIS Application Pool Mappings

As you know we have Visual Studio Development Server (aka Cassini) that is used to debug/run your project within VS without needing IIS…  I talked a little bit about this in my previous post… The other possibility for running and debugging your app is by using IIS on your local box itself…

VS allows you to create a WAP or a Web Site which uses IIS instead of Cassini… Even here MT needs to intervene; if you are creating a .NET 2.0 IIS Web then VS 2010 needs to go access IIS and create Virtual Directories, IIS Apps and map them to the correct App Pools running in correct target frameworks… Simply put VS 2010 needs to put .NET 2.0 project in .NET 2.0 App Pool and .NET 4 project in .NET 4 App Pool…  I wish it was just limited to this but there are instances when correct App Pools are not available and then VS 2010 needs to go and create them for that framework… Sometime the project is mapped to use .NET 2.0 App Pool and now it is being upgraded to .NET 4… In this scenario VS needs to go and change the IIS App to use the correct App Pool too…

VS 2010 actually uses IIS 6 Metabase APIs to make these changes and even when you are using IIS 7.0 or 7.5 VS 2010 continues to use the same Metabase APIs and hence if you are using IIS as your development server with VS 2010 with Vista/Win7 you will need to have IIS 6 Metabase Compatibility Layer turned on in Control Panel –> Programs–> Turn Windows Features On/Off  as shown below:

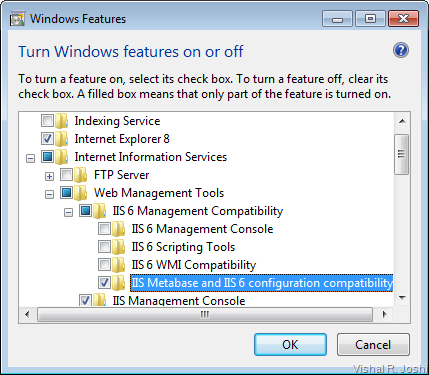

metabse compatibility

It is not only when VS 2010 flips/flops Virtual Directory App Pools when this compatibility layer is used… It is also used when IIS App is created for the first time, in short it is used every time you use IIS based web project within VS 2010…

In all honesty, in VS we could write code to get rid of the IIS 6 Metabase compatibility dependency and instead start using IIS 7 configuration system API but there was a lot work needed to do that we could never get to completely finishing it on time… :-( I totally understand that it is going to be an inconvenience to have the compatibility layer enabled and I apologize for the same but I hope that you will recognize the fact that we do have the intent to finish the work but just from cost and schedule standpoint we could not fit this work into VS 2010…

Anyways, I have reached at the end of my stipulated couple of hours of time to write this post… I assumed that if I give myself couple of hours to write then the content will be at reasonable reading length without making everyone bored, it will also ensure that I do not start writing gibberish :-)

I certainly have more inner workings to tell you about Web MT but I guess that the content is interesting enough to deserve “All for that small Drop Down Box - Part 3”…!!

So until then please do feel free to let me know if any of this is any good to anyone reading :-)


The remaining posts in the Web MultiTargeting Series are:

Monday, August 24, 2009

All for that small Drop Down Box – Part 1

Multi Targeting in Visual Studio 2010 is surprisingly a big feature area… It falls under the category of what we called as a “Divisional Initiatives” which spans across nearly all of Visual Studio and .NET Framework teams… Even engineers from outside of VS and .NET teams contributed significantly on the project... With this series of blog posts I am going to merely focus on MultiTargeting (MT) for Web Developers in Visual Studio 2010 and ASP.NET 4…

First of all let me call out by saying that in VS 2008 there was only one version of CLR i.e. CLR 2.0… Various framework versions i.e. .NET 2.0, .NET 3.0 and .NET 3.5 were only changes to the framework assemblies which still ran on the same CLR 2.0…  With .NET 4 this equation changes coz .NET 4 runs on CLR 4…  VS 2010 now needs to support .NET 2.0, .NET 3.0, .NET 3.5 as well as .NET 4 Applications; this implies that now we are about to cross into different CLRs for Applications targeting different Framework Versions… Solving this issue is in part what VS 2010 MT is all about… Solving this problem for various ASP.NET Web projects is what Web MT is all about…

As VS 2010 itself loads CLR 4, trying to create, edit, debug, deploy applications with VS 2010 running on CLR 2 would mean loading CLR 2 inside CLR 4…  That without going into detail is a technical nightmare… To overcome this VS 2010 loads only CLR 4 and .NET 4 in its process and for applications targeting .NET 2.0, 3.0 or 3.5 VS 2010 makes .NET 4 emulate .NET 2.0/3.0 or 3.5.

So how does the emulation inside VS 2010 really happen?

With VS 2010 there is a new concept called as “Reference Assemblies”… “Reference Assemblies” simply put are meta data assemblies which represent each framework… These assemblies do not contain the complete implementation of the framework they just allow VS 2010 to decipher what classes, methods, properties, resources etc are really present in each .NET Framework version… You can find these “Reference Assemblies” in %Program Files%\Reference Assemblies folder…. There is more to the process of creating “Reference Assemblies” and registering them etc but for now I will not get into those details…

As I mentioned earlier inside VS 2010 process only CLR 4 and .NET Framework 4 is loaded… If you create a .NET 2.0 project, VS 2010 will use the .NET 2.0 Reference assemblies to ensure that your project behaves like a .NET 2.0 app… Although, all the time when you are editing your .NET 2.0 code, designing your web pages, authoring controls, debugging etc you are actually using .NET 4 but VS 2010 is masking off all the .NET 4 features based on the directions provided by .NET 2.0 Reference Assemblies… Now when you build your projects VS 2010 cannot use .NET 4 and CLR 4 to create the output assemblies coz if VS 2010 would do that then you would not be able to run your project on a box which only has only .NET 2.0 (i.e. not CLR 4/.NET 4)…  Hence, when it comes to building the assemblies VS 2010 launches the correct compilers out of process and generates the correct assemblies for your project…

Now with this high level understanding let me mention that as I write this article I am thinking that I have been lucky to have worked with great engineers across the company to make the VS 2010 MT experience the way it is today and additionally I feel lucky that people whom we build all this stuff for (ie .NET developers world wide) can actually understand what goes into development of such a system as Visual Studio and .NET Framework… Anyways, let us get into the meat of what all does all this crazy MT stuff buys web developers at the end of the day (APART FROM THAT SMALL DROP DOWN BOX that you see…  :-)

small drop down box

Migrating pre-VS 2010 (starting from VS 2003) web projects to VS 2010 – One of the feature areas of Web MT is migration of apps created using previous version of VS to VS 2010.  VS 2010 allows migration from VS 2003, VS 2005 as well as VS 2008…  This entails modifying the solution files (.sln) and project files (.csproj/.vbproj) of your Web Projects to make them complaint with VS 2010 format.

Have you wondered why do we need to do that??  As you might already know project and build systems within VS work using MSBuild… There are target files and task dlls which are installed as part of VS 2010 in specific directories… These directories need to be side by side with VS 2008/VS 2005 directories to ensure that you can run VS 2008 and VS 2005 on the same box and uninstalling of any of the IDEs does not break the other versions… Anyways, there are references to various target files inside the solution and project which need to be updated to be point to the correct directories of VS 2010… Apart from that there is also changes to IDE version etc which is embedded inside these files which are used by VS, all that stuff needs to be updated…

When you open VS 2003/2005 or 2008 projects in VS 2010, VS will automatically do this migration for you.

People always bring up the discussion where they would like few developers in their team try out VS 2010 and remaining stay with VS 2003/2005 or 2008.  They typically want to try out the VS 2010 release in a limited way and once the few folks trying the product give a green light they would move the entire team to VS 2010…  Doing this is of course possible but an additional ask which comes with that is “Can we have some developers use VS 2010 while others use VS 2008 for the same project/solution file in a common source control?”; unfortunately the answer to that is No…  The process of having the same project being operable in various versions of VS is what we call as “Round-Tripping”… We really did want to include this feature for VS 2010 but unfortunately could not due to the existing complexity of MT (as discussed above, below and everywhere in this post :-)) + limited time to get everything right… !!  Well, what is important is that we will make everyone in your project team move to VS 2010 easy enough that you can have the entire team bet on it at the same time…!!  Let us see how -

Upgrading pre- .NET 4 web projects to .NET 4  - VS 2010 will also allow you to upgrade your .NET Framework version from .NET 2.0, 3.0 or 3.5 to .NET 4…  This now enters the realm of making changes which impact your code… That is the reason VS 2010 allows you to either stay with your existing Framework version or upgrade the Framework version to .NET 4… There are tons of cool new ASP.NET 4 features, I encourage you to read the whitepaper on ASP.NET 4 and VS 2010 to learn more… -

Creating .NET 2.0, 3.0, 3.5 as well as .NET 4 projects – This is drop down box  which I am referring to in the title of this article… :-)  It will manifest itself again but what is important to note is that when you try to use File –> New –> Project or File –> New –> Web Site (as shown below), you will get a choice to choose the Framework version of your choice for the new project…

new project framework dropdown

Some folks will still have their web servers set up only for .NET 3.5 and in that case they can choose the corresponding framework version from the drop down…  As soon as the framework version is chosen in you will notice that the project templates will get filtered correctly…  When any of the project templates (or item templates) are authored we now have a concept of embedding the “Min Framework Version” and “Max Framework Version” in them…  This allows VS 2010 to determine which templates to show and hide when you are choosing a particular Framework.  It also ensures that we do not need to have multiple copies of the same template within VS saving time and size during VS 2010 install…

Filtering Item Templates for Framework Version – Similar to the project templates discussion above are the details for the Item templates…  When you go ahead and try to right click on your project and Add—> New Item, similar filtering happens… For e.g. you do not see “ADO.NET Entity Data Model” item template if you right click on a .NET 2.0 project


Item template filtering works similar to project template filtering… Also it is worth noting that there can always be custom code which can be run during “Project creation” or “adding Item Template” which allows VS 2010 to do special things with the template per .NET framework version…  A good example of this is the web.config file template which needs to generate different web.config file based on the .NET framework version…  So if you crack open a item template you might see some conditional framework based logic in there… :-)

ToolBox Filtering – As you are about to design your page or user control you may tend to drag and drop controls from toolbox… At this time VS 2010 needs to make sure that you see only the controls that your .NET version allows…  If you remember I mentioned earlier that VS 2010 is always running .NET 4…  If the toolbox showed all the controls associated with .NET 4 all the time then you might see unwanted controls when you are targeting .NET 2.0 and potentially may have errors in production if you used .NET 4 controls in .NET 2.0 projects… To avoid this from happening VS 2010 uses “Reference Assemblies” and the entire architecture surrounding them to identify what controls need to be shown in the toolbox…

At this time VS 2010 also gathers what the tooltip for the controls and shows them correctly to you so that you know what type of control are you using…

toolbox version tooltip

Additionally what is interesting to note is that the toolbox meta data population also happens for 3rd party controls and hence even if you were using Infragistics or Dundas control their metadata will also get correctly reflected in the Toolbox i.e. their framework dependency chain will be walked and correct Framework dependency will be verified…

As you can imagine there is a lot of work being done based on your framework version to go down to “Reference Assemblies” and find out what needs to be shown what does not and only after all that the toolbox gets populated correctly…

Property Grid Filtering – Now if you pause and ponder for a moment that it is only the .NET 4 control which is being used within VS all the time then you can possibly imagine that some controls may now have more properties in .NET 4 than what they use to have in the previous framework versions… For example let us take Login control in .NET 2.0 vs the same control in .NET 4… ClientIDMode did not use to exist in .NET 2.0 but does in .NET 4.

property grid filtering  In this case VS 2010 needs to make sure that those extra properties are not shown in the control property grid as shown above, coz if they do and someone accidentally sets them then they will appear as part of the .aspx/.ascx markup and will get deployed to the web server… As on the web server the app will be set to run in .NET 2.0 it will not recognize the ClientIDMode property and will throw an exception causing production failures.

One additional goals of Web MT was to ensure that if at all there are any accidental mistakes then they are caught well early within VS rather than letting them propagate and have the application fail at runtime…

In fact I would say that it would be a cardinal sin for Web MT if VS 2010 design time allowed you to create an app which will fail after deployment and the teams over here have done whatever it takes to make sure that does not happen…

Switching C# & VB compilers for the correct Framework Versions – As I mentioned earlier based on the correct framework version the correct C# & VB compilers need to be invoked so that correct binaries can be produced for your projects… This also ensures that VS 2010 is able to catch errors in the C# & VB code based on the compiler features for the particular framework version…

From compilation standpoint there are different things that happen for Web Application Projects (WAPs) as compared to Web Site Projects (WSPs) which I have explained in the article WAPs vs Web Sites and so there are is a interesting design on how the compiler switching happens in case of these different project systems… I will explain that in a future article but for now you can be rest assured that when you target .NET 3.5 VS 2010 will produce binaries which will run on .NET 3.5 and when you use .NET 4 VS 2010 will produce binaries which target .NET 4…:-)

Add Reference Dialog Filtering – When you try to add new references to your projects to any of the assemblies now you will notice that you will see the references associated with the correct framework version… Again this list is populated by querying reference assemblies similar to what toolbox and property grid filtering did…

In Add Reference dialog box again the validation is done against your project and you are shown only the references which are legit to be added to your project based on its .NET Framework version…

You will also notice that the path of the Framework assemblies will be pointing to Reference Assemblies folder as shown below:

Add Reference

One of the big challenges that the team faced was trying to improve the performance as compared to VS 2008 while incorporating all these architectural changes around the meta data only assemblies…  The design of  reflecting upon the “Reference Assemblies” and then filtering out .NET 4 assemblies to finally populate the dialog boxes, tool boxes, property grids etc certainly is a lot more work as compared to simply looking at a fixed folder location that was being done in VS 2008…   I am really proud of our team who have spent countless amount of time in fine tuning the flow of these designs to ensure that performance is not adversely affected and hopefully in future builds of VS 2010 you will notice the perf improvements since Beta1 build…

Using the correct machine.config and root web.config

Many of you might be already aware that the web.config file that you see in your web project is actually part of a hierarchical config system…  There is machine.config as well as root web.config which resides in CONFIG folder under “%Windows%\Microsoft.NET\Frameworks\Vx” directory…   Actually an interesting piece to note is that for .NET 2.0, 3.0 and 3.5 the CLR version was always 2.0 and hence the machine.config and root web.config file was never changed since .NET 2.0, check out the “Config” folder for .NET 2.0, if you go to v3.0 or 3.5 you will not find any “Config” folder at all:


For .NET 4.0 you will have a similar folder and it will contain “machine.config” and “web.config” files… In essence .NET 4 is the first opportunity for ASP.NET to have a different root web.config and machine.config… Certainly that brings a huge set of advantages but increases the work we needed to do from Web MT standpoint.

Now when you create .NET 2.0/3.0 or 3.5 project in VS 2010 then the machine.config and root web.config needs to be picked up from .NET 2.0 folder but if you create .NET 4 project then the machine.config and root web.config needs to be picked up from .NET 4 folder…  In nutshell when you start typing <appSettings> and so on in your web.config file do note that the schema intellisense that you get is also customized to the correct config hierarchy that you are in.

If you have incorrect settings in web.config file (which might be correct for a different Framework) then you get errors because of this work in Web MT to use the config files from the correct Framework hierarchy…

Picking correct version of Visual Studio Development Server (Cassini)

As you know we have Visual Studio Development Server (aka Cassini) which ships for local development of web projects within VS… In VS 2010 we will ship with two versions of Cassini EXEs, if you observe system tray balloons/pop-ups you will now notice either webserver40.exe or webserver20.exe… That is because Cassini runs outside the process of Visual Studio and for debugging your .NET 2.0/3.0/3.5 you actually want to run under CLR 2.0 and to try your .NET 4.0 apps you need to run under CLR 4.0… This will provide real framework experience during F5/Ctrl+F5 and View in Browser scenarios… Apart from various bug fixes that went into Cassini 4 this was another chunk of work for our QA team did to verify whether VS 2010 picked up correct version of Cassini or not…

There are several other things related to Multi targeting that I would like to ramble about, but if I do it right now it will just become too long to be read, instead I will hold off for now and continue  with Part 2 in next few days…

Till then my hope is that you will look at that small drop down box a little more next time and remember us all :-)


The remaining posts in the Web MultiTargeting Series are:

Wednesday, August 12, 2009

Fix-It: Nesting between .aspx and code behind is lost when you move files to a different folder

In this post I am hoping to cover a quick tip/trick about file nesting in ASP.NET Web Site Project.

Let’s say you have the below web site in your solution explorer:

nest files

If you move “About.aspx” and “About.aspx.cs”  to the “New Folder” shown above then you will see the file nesting in solution explorer incorrect…

To fix this issue there is a solution explorer button for “Nesting Related Files” as shown below…


When you click this button the project system should update the solution explorer and show you the nested files correctly…


Technorati Tags: ,

Fix-It: Multiple instances of Visual Studio Development server getting created

Sometimes while developing some of you might notice a lot instances of Visual Studio Development Server (aka Cassini) in your system tray… Many of these icons when clicked on land up just vanishing away and at times these icons may flood the system tray causing frustration…  Sorry for that :-(

One of the reasons for this happening is that ASP.NET Development server is set up to use dynamic port allocation as shown below:

WAP (Right Click Project –> Properties –> Web)

Auto-assign Port

Web Sites (Select Web Sites –> F4 to see properties)


Sometimes on some developer boxes either Windows firewall or custom firewall blocks a bunch of ports… In this situation Web Development Server tries to hook to one of the blocked ports port and is not allowed to… In the process the Development Server lands up crashing… Next time it tries to assign itself to another dynamic port and the same thing happens…  As a result there are various tray icons created even though the Web Development Server exe has actually crashed…  That is the reason when you hover over the icons in the system tray they vanish away…

Firstly, let me call out that this is a bug, I just verified it with our key dev Bill Hiebert and he confirmed that this is now fixed in VS 2010…  For the time being the work around for

VS 2008 developers is to go ahead and turn off the Auto-assign Port/Use Dynamic ports option and actually set a fixed port which you know is not blocked by one of your firewalls…  Hopefully with this the multiple icons in the system tray should no longer appear…

If you still face problem then do write back…
